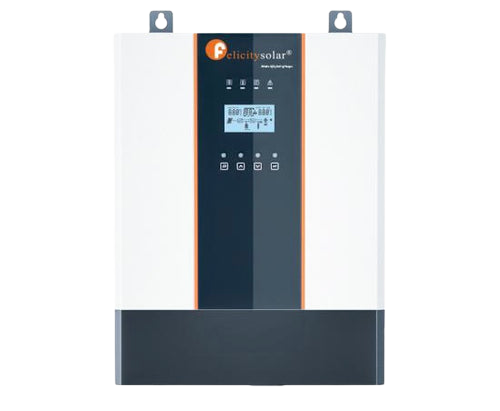

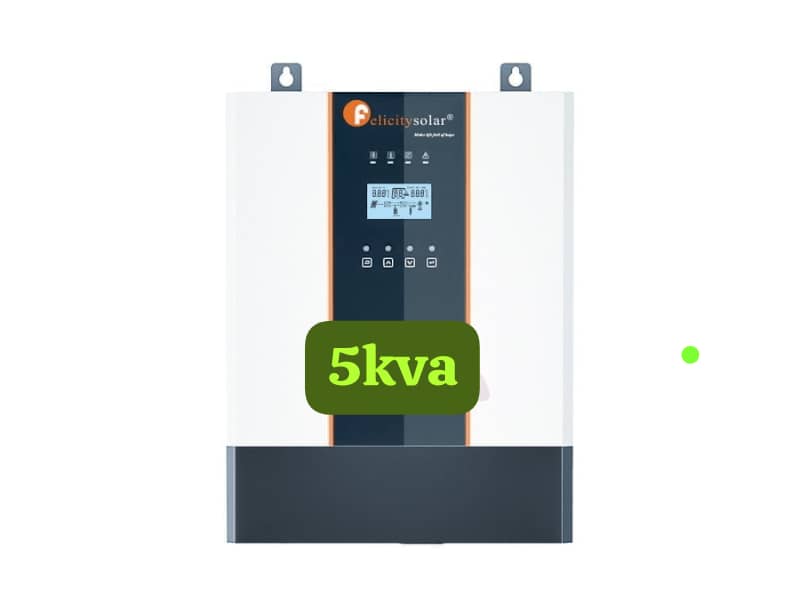

Experience uninterrupted power with the Felicity 5kW Hybrid Inverter, a cutting-edge energy management solution designed to enhance your power supply experience. This innovative inverter boasts an automatic transfer capability between battery and line mode, ensuring a seamless transition and uninterrupted power flow even during fluctuations.
Reliability is at the forefront of the Felicity 5kW Hybrid Inverter’s design, thanks to its advanced microprocessor control. This feature guarantees consistent performance and optimal energy management, making it an ideal choice for both residential and commercial settings.
The inverter’s versatility is further enhanced by its remote control and BTS terminal, allowing you to conveniently monitor and manage your power supply from a distance. Additionally, the intelligent charging control optimizes battery charging efficiency, extending battery life and overall system longevity.
For those seeking enhanced power stability, the Felicity inverter offers an optional Bypass with AVR function. This feature provides additional protection against voltage fluctuations and ensures a stable power output.
Customization is made easy with adjustable settings for maximum charging current, battery type, and charge current. The inverter’s user-friendly interface, coupled with front-button controls, allows you to set charge and output priorities according to your specific needs.
Key Specifications and Features :
Rated Power: 5KVA/5000W
Input Voltage: 230V
Selectable Voltage Range: 170-280 VAC (Standard) / 90-280 VAC (Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
Battery Voltage: 48VDC
AC Voltage Regulation: 230VAC ± 5%
Efficiency (Peak): >95% (Rated R load, battery fully charged)
Transfer Time: 10ms typical (UPS); 20ms typical (Appliances)
Waveform: Pure sine wave
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 100A
Maximum Charge Current: 100A
Rated Power: 6000W
Max. PV Circuit Voltage: 450Vdc max
PV MPPT Voltage Range: 120~450Vdc
Min. Battery Volt for PV Charge: 34Vdc
Storage Temperature: 0°C – 55°C
Operating Humidity: -15°C – 60°C
Physical Dimensions: 415 x 320 x 129 mm
Net Weight: 13.2 kg
Warranty: 1 year.
