Felicity 60A 12V/24V/48V MPPT Solar Charge Controller SCCM6048; 12V, 24V, 48V Ba

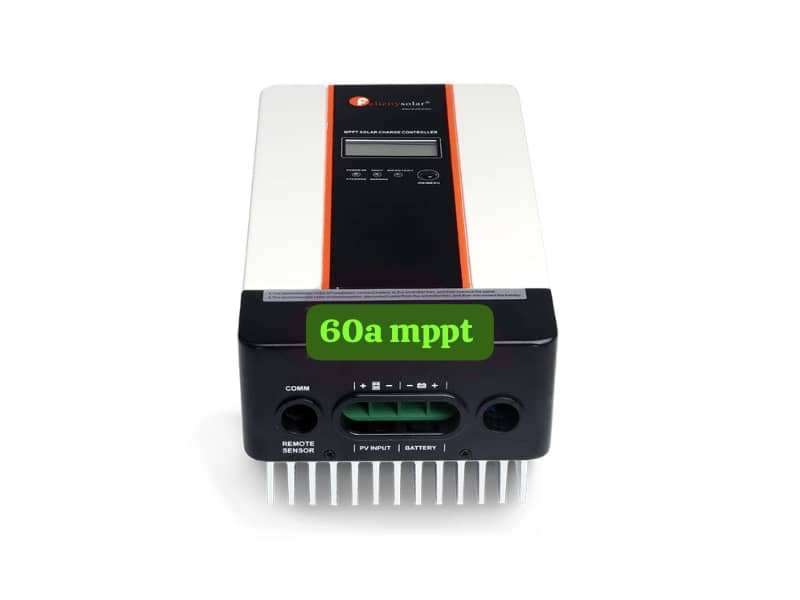

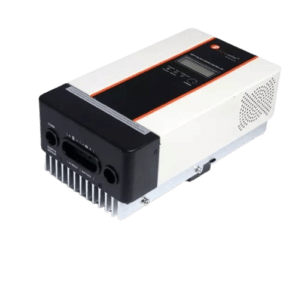

Felicity 60A 48V MPPT Solar Charge Controller SCCM6048

Advantages

Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%

Automatic battery voltage detection（12V/24V/48V）

Three-stage charging optimizes battery perfor\mance

Maximum charging current up to 45A/60A/80A/100A/120A

Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation

Integrated intelligent slot compatible with SNMP/MODBUS communication

Specifications

• Work Time (h): 24
• Max PV Power: 3300W
• Max PV Voltage: 145V
• Certificate: CE IEC ROHS
• Warranty: 1 Years
• Rate current: 60A
• Battery voltage: 12V/24V/48V
• Max. solar voltage: 145V
• Temperature range: -20℃ —– 45℃
• Peak Conversion efficiency: 98%
• Display: LCD Display
• DC Array MPPT Volage Range: 12 VDC / 24 VDC / 48 VDC
• Overcharge voltage: 15V/30V/60V
• Battery discharge voltage: 8.5V/17V/34V
• Gross weight: 4.5KG
